PM-KUSUM Approved • Up to 90% Subsidy

Solar Submersible
Pump System

Replace expensive diesel pumps with clean solar power. Irrigate your fields 24×7 for free — no electricity bill, no diesel cost. India's largest PM-KUSUM scheme offers up to 90% subsidy for farmers.

90%

Subsidy Available

₹0

Electricity Cost

25Yr

Panel Warranty

Check PM-KUSUM Subsidy WhatsApp Us
What Is It?

Solar-Powered Water Pumping for Farmers

A solar submersible pump system replaces diesel or grid-powered pumps with solar panels that directly power a submersible motor placed deep inside a borewell or open well. It lifts water to the surface for irrigation, drinking water supply, or livestock.

Under PM-KUSUM Component C, the government covers up to 90% of the cost — farmers pay only 10%, and in many states even that 10% comes as a soft loan from NABARD or state banks.

No grid connection needed

Fully stand-alone operation

Works during power cuts

No dependency on DISCOM

Zero fuel cost

Sunlight is free forever

1 to 10 HP available

Any borewell depth covered

Solar panels powering agricultural water pump in a field

PM-KUSUM Scheme

Component C — Stand-alone Solar Pumps

90%

Subsidy

Working Principle

How a Solar Pump Works

Sunlight to water — in four simple steps

☀️
1

Solar Panels

Absorb sunlight and convert it to DC electricity. Mounted on a MS frame near the borewell.

⚡
2

VFD Controller

Variable Frequency Drive converts DC to AC and regulates pump speed based on sunlight intensity.

💧
3

Submersible Motor

AC power drives the motor inside the borewell, pulling groundwater up through rising pipes.

🌾
4

Field Irrigation

Water is delivered to drip/sprinkler lines or storage tanks for irrigation and drinking.

Large solar farm powering rural agricultural operations

₹0 Diesel. ₹0 Electricity.

Solar pumps pay for themselves in under 4 years — then it's 20+ years of free water.

Government Scheme

PM-KUSUM Component C Subsidy

Pradhan Mantri Kisan Urja Suraksha evam Utthaan Mahabhiyan — 30 lakh solar pumps target by 2026

60%

Central Govt

Directly from Ministry of New & Renewable Energy (MNRE)

30%

State Govt

State DISCOM or Agriculture Dept top-up (varies by state)

10%

Farmer Share

Your out-of-pocket cost — often funded by NABARD soft loan

Eligibility Criteria

Individual farmers with agricultural land
Farmer Producer Organizations (FPO)
Water User Associations & Panchayats
Cooperatives and Self Help Groups
Borewell/open well already available or planned
No existing grid-connected pump at same location
Valid Aadhaar + bank account for farmer
Land ownership or long-term lease documents
Pricing

Solar Pump Packages & Pricing

All prices after 90% PM-KUSUM subsidy. Pre-subsidy price shown for reference.

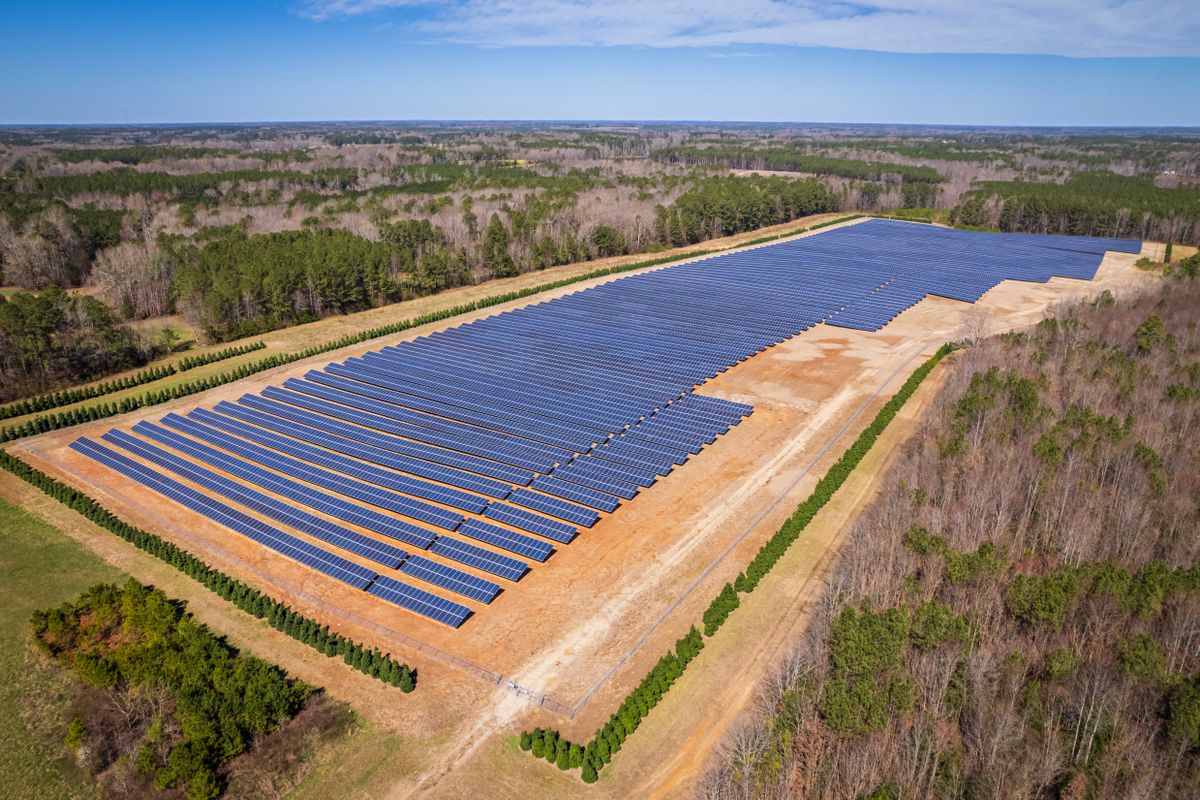

Solar panels installed on a farm for agricultural water pumping
Pump Capacity Solar Panel Water Output/Hr Borewell Depth Pre-Subsidy Cost After 90% Subsidy Ideal For
1 HP 900W 18,000 L 60–80 ft ₹1,20,000 ₹12,000 Kitchen garden, small plot
2 HP 1,800W 36,000 L 80–120 ft ₹1,80,000 ₹18,000 1–2 acre farm
3 HP 2,700W 54,000 L 100–150 ft ₹2,50,000 ₹25,000 2–3 acre farm
5 HP Popular 4,500W 90,000 L 150–200 ft ₹3,80,000 ₹38,000 4–5 acre farm
7.5 HP 6,750W 1,35,000 L 200–250 ft ₹5,20,000 ₹52,000 6–8 acre farm
10 HP 9,000W 1,80,000 L 250–300 ft ₹6,80,000 ₹68,000 8–12 acre farm

*Prices indicative. Final subsidy depends on state policy. Contact us for exact quotation.

Why Solar Pump?

Farmer Benefits at a Glance

💰

Eliminate Diesel Cost

A 5HP diesel pump costs ₹50,000–70,000/year in fuel. Solar eliminates this completely from day one.

🌊

Reliable Water Supply

No DISCOM power cuts, no fuel shortages. Pump runs whenever there is sunlight — 8 to 10 hours daily.

🌱

Zero Carbon Emission

Completely clean energy. No smoke, no noise, no pollution — good for you and the environment.

🔧

Low Maintenance

No moving parts in solar panels. Motor service every 3–5 years only. Much simpler than diesel engines.

📈

Income from Surplus Power

Under PM-KUSUM, unused solar power can be sold back to DISCOM at ₹3.07/unit, earning extra income.

🏦

25-Year Return

After paying 10% cost (sometimes even that is a soft loan), you get free water and/or income for 25 years.

Agricultural irrigation system powered by solar energy

₹50,000+

Annual diesel saving (5HP pump)

4 Years

Typical payback period after subsidy

₹10 Lakh+

Total saving over 25-year lifespan

Diesel Pump vs Solar Pump

5HP pump, 10 hrs/day, 200 days/year comparison

⛽

Diesel Pump

Annual Fuel Cost ₹55,000 – ₹70,000
Maintenance ₹8,000 – ₹15,000/yr
Downtime High (fuel shortages)
Emissions CO₂ + smoke
25-Year Cost ₹15–18 Lakh
Income from energy Nil
☀️

Solar Pump

WINNER
Annual Fuel Cost ₹0 (sunlight is free)
Maintenance ₹2,000 – ₹3,000/yr
Downtime Very low
Emissions Zero
25-Year Cost ₹68,000 (after 90% subsidy)
Income from energy Up to ₹18,000/yr (extra power)
System Components

What's Included in the Package

01

Solar PV Panels

Monocrystalline PERC panels, 25-year performance warranty from Tier-1 brands (Adani, Waaree, REC).

02

Submersible Pump Motor

ISI-marked AC or DC motor. Brands: Kirloskar, Grundfos, KSB. Stainless steel body, corrosion resistant.

03

VFD / Pump Controller

Automatically adjusts pump speed to match solar power availability. Protects motor from dry running.

04

MS/GI Panel Stand

Hot-dip galvanized mounting structure. Tilt angle optimized for your latitude.

05

HDPE Rising Pipes

UV-stabilized, pressure-rated pipes for water from pump to surface. No rust, long life.

06

Junction Box & Wiring

IP65-rated weatherproof box, UV-resistant DC cables, proper earthing and lightning protection.

Where It Works

Ideal Application Areas

🌾

Crop Irrigation

Wheat, rice, sugarcane, vegetables — any crop irrigation requirement

🐄

Livestock Watering

Dairy farms, goat farms, poultry — reliable daily water supply

🏘️

Village Water Supply

Community borewells, overhead tank filling for drinking water

🏗️

Construction Sites

Remote locations with no grid supply where water is needed

FAQ

Common Questions

Can I sell extra power to the grid with PM-KUSUM?
Yes — under PM-KUSUM Component A (feederisation), surplus power from farm-based solar plants can be sold to DISCOMs at a pre-agreed tariff (usually ₹2.50–₹3.50/unit). Individual stand-alone pumps (Component C) do not have net-metering, but you can apply under Component A separately for land-based plants.
What if my borewell runs dry?
The VFD pump controller includes a dry-run protection feature. It detects the absence of water and automatically shuts off the motor within seconds, preventing motor burn-out. The system restarts automatically once water level recovers.
Does the pump work on cloudy days?
Yes, but at reduced capacity. Modern VFD controllers can run the pump on as little as 30% of rated solar power. Completely overcast days may reduce flow to 10–20% of peak output. A water storage tank (1,000–10,000 litre) is recommended as a buffer.
How long does installation take?
A complete solar pump installation takes 2–4 days after site survey: panel mounting on day 1–2, pump lowering and pipe fitting on day 2–3, electrical connection and testing on day 3–4. PM-KUSUM applications take 4–8 weeks for approval before installation.
Is any grid connection required?
No. Solar submersible pumps (Component C) are completely stand-alone. They do not need any grid connection, meter, or permission from DISCOM. This makes them ideal for remote fields with no electricity supply.
What warranty do I get?
Solar panels come with a 10-year product warranty and 25-year performance warranty. The submersible motor carries a 1–2 year warranty from the OEM. VFD controllers are warranted for 1 year. Wemega provides 1 year free AMC on the full system.
How to Apply

Get Your Solar Pump Installed

We handle the entire PM-KUSUM application and installation process for you

1

Site Survey

We visit your field, check borewell depth, soil type, crop area, and water requirement.

2

Subsidy Application

We prepare and submit PM-KUSUM application with all documents to state nodal agency.

3

Approval (4–8 wks)

State DISCOM/agriculture dept reviews and issues sanction letter with subsidy amount.

4

Installation

Pump, panels, pipes, VFD installed in 2–4 days by our certified technicians.

5

Handover & AMC

Full demonstration, operator training, 1-year free AMC, 24×7 support.

Get Your Farm Diesel-Free Today

Check your PM-KUSUM eligibility in 5 minutes. Our experts handle the entire application — you just enjoy the free water.

Check PM-KUSUM Eligibility WhatsApp Query

Free consultation · No commitment · PM-KUSUM experts on call
